Mat: Black Base color with White, Grey & Red details
Anchor Bars: Silver
Springs: Black
Specs - Compatibility
Acon 16HD or any similarly sized trampoline with FRAME (= distance between the opposite spring holes) dimensions falling within: Length 489-505 cm and Width 268-284 cm.
Acon 13HD or similar sized rectangular trampoline with FRAME (= distance between the opposite spring holes) dimensions falling within: Length 384-400 cm and Width 237-253cm.
NOTE: Measure the distance between the spring holes on opposite sides of your trampoline frame with the original mat and springs installed.
Specs - Content

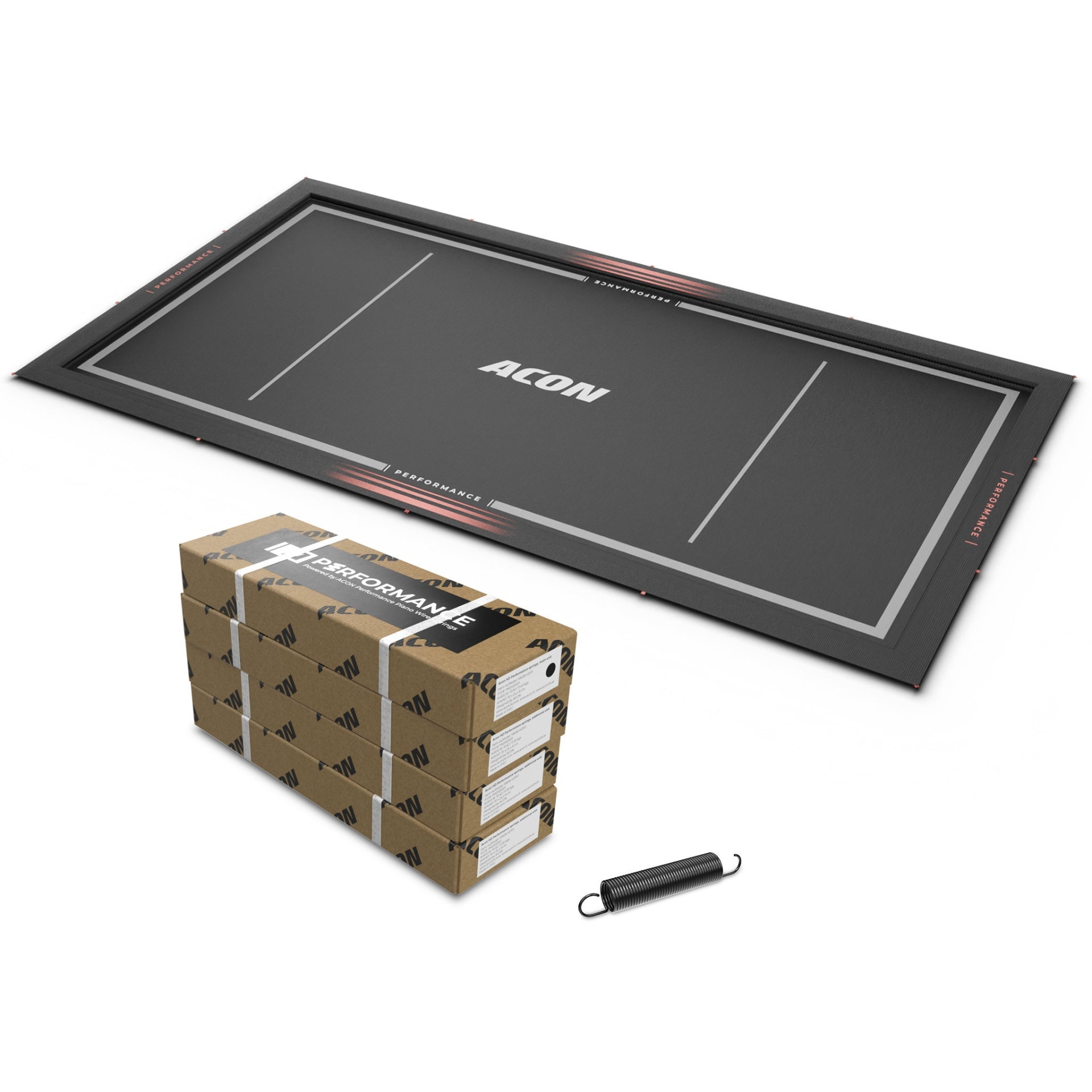

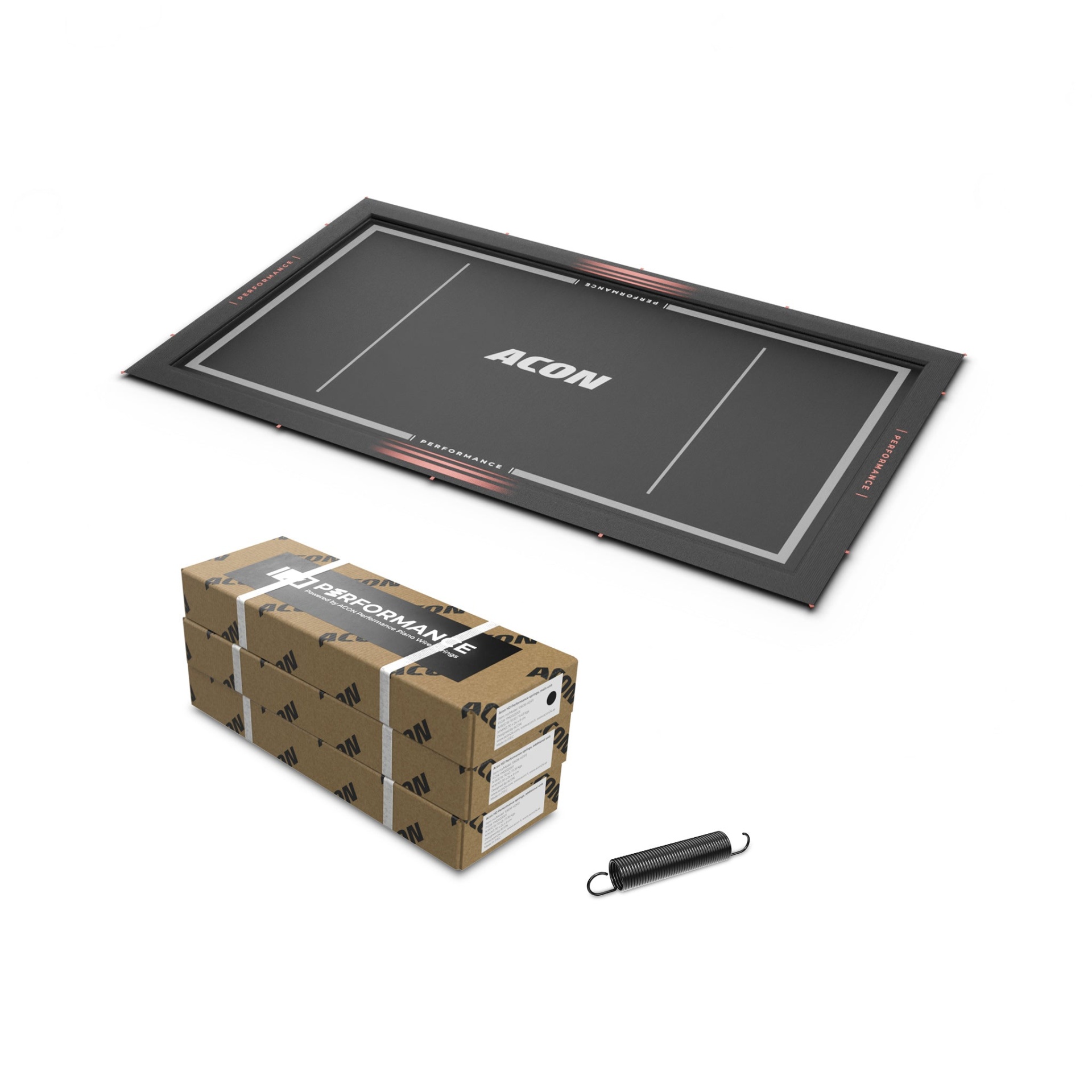

Performance Mat:
Performance Mat
Anchor Bars, 108 - 140 pcs (depending on the mat model/size)
Mat edge padding pieces, 4 - 12pcs (depending on the mat model/size)
ACON Performance branded enclosure pole sleeve (1pcs Black, 1pcs Green)
Note that these sleeves are tailored to Acon enclosure dimensions and may fit differently on other brands.
ACON Transfer film stickers 4pcs
ACON Drawstring Bag
Specs - Material
Mat: Cross-sewn polypropylene, UV-treated
Anchor Bars: Stainless steel
Springs: Piano wire spring steel
Specs - Other Info
Patent Pending technologies included: Flow Tech, My Bounce, Safe Mat
Adjustable size and spring anchor bar positions. Compatible with many trampolines of nearly the same size. See the dimensions.
NOTE: Spring pull tool sold separately
Specs - Outer Dimensions
13HD Mat size (4m): Adjustable size. Length: 329-339 cm. Width: 182-192 cm. From the outer edge of one spring loop to the outer edge of the opposite loop)
16HD Mat size (5,2m): Adjustable size. Length: 434-444 cm. Width: 214-224 cm. (From the outer edge of one spring loop to the outer edge of the opposite loop)
Spring length: 210mm. Spring diameter: 36mm.
Specs - Package Size
Mat packaging: 67x20.5x46 cm

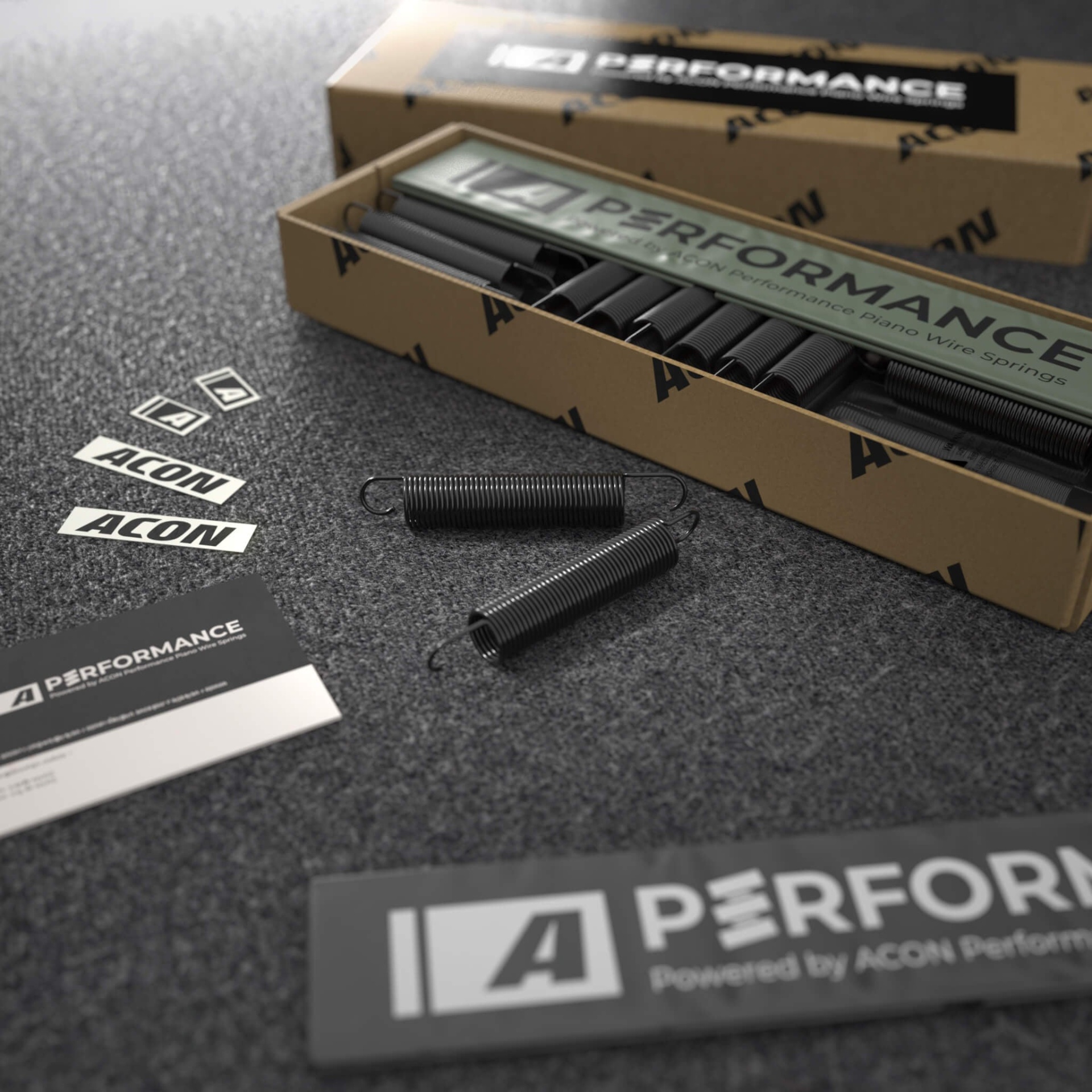

Spring packaging: 70x24x9 cm (16HD kit includes 4 spring boxes, 13HD kit includes 3 spring boxes)
